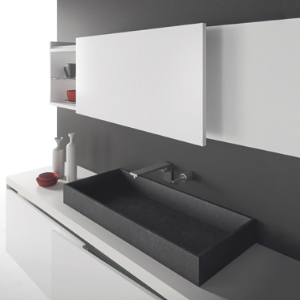

Product Image: Coplanar Sliding Door System
Salice America
Coplanar Sliding Door System
S10 Slider, Carriage Kit

Standard Features:
• Innovative sliding door system.
• Extremely easy to customize and assemble.
• Secured with screws without the need of drilling or machining the doors and change to cabinet.
• Single-piece sliding track.
• Innovative suspended slider with double horizontal wheels.
• Soft opening and soft close feature.
• Full adjustment of the doors.

Salice 's S10 Small Sliding Door system is designed for double door wall and base cabinets with maximum door weight (per door) up to 22 lb (10 kg).
A great choice for closet, laundry, bathroom or kitchen in residential application, healthcare industry or any other commercial use.

A standard out-of-the-box solution is available for double door application for cabinets with internal width ranging from 860 mm (33-7/8") to 2400 mm (94-1/2").

Door dimensions:
• Max. weight capacity per door: 10 kg (22 lb)
• Width of the door: min. 450 mm (17-11/16”), max. 1200 mm (47-1/4”)
• Max. height of the door: 800 mm (31-1/2”)
• Thickness of the door: min. 16 mm (5/8”), max. 30 mm (1-3/16”)
• Max. thickness of the door with handle: 40 mm (1-9/16”)
• Min. distance of the handle from the edge of the door: 10 mm (3/8”)
• Door height adjustment: ± 5.0 mm (±3/16”)
• Door side adjustment: ± 2.5 mm (±1/8”)

Door depth:
• wall: ± 2.0 (±1/16”)
• base: ± 2.5 (±1/8”)

Custom sizes are also available via custom order.
Available also as motorized version with maximum door weight of 35 Kg (77 lb) only upon request as a custom order.


***NOTE: PRODUCT NOT AVAILABLE IN ALL OUR DISTRIBUTION AREAS, PLEASE CALL CUSTOMER SERVICE FOR FURTHER ASSISTANCE***

Packed & Sold In: 1 Kit per box.
How can we improve this product description? Click here
Thank you ! We have received your message.

* Please log in to view your account pricing and availability of the requested qty.


UM
Cat.
Sect.
& Page

Info Tip
Cat.
Sect.
& Page

Info Tip
Min.
Order
Qty
Item #
Type
Series
Mechanism Length
Maximum Door Height
Maximum Door Weight
Maximum Door Thickness
Style
Maximum Door Width
Internal Cabinet Width
Box Quantity
Product Attributes
MSDS (PI)
EA
-0
UBYE57KIT0101
Mpn: YE57KIT0101
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
860-987 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
22 lb (10 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
860-987 mm
Item #: UBYE57KIT0101
Mpn: YE57KIT0101
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
860-987 mm
Box Quantity
EA
-0
UBYE57KIT0102
Mpn: YE57KIT0102
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
988-1,115 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
22 lb (10 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
988-1,115 mm
Item #: UBYE57KIT0102
Mpn: YE57KIT0102
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
988-1,115 mm
Box Quantity
EA
-0
UBYE57KIT0103
Mpn: YE57KIT0103
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1,116-1,371 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
22 lb (10 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
1,116-1,371 mm
Item #: UBYE57KIT0103
Mpn: YE57KIT0103
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1,116-1,371 mm
Box Quantity
EA
-0
UBYE57KIT0104
Mpn: YE57KIT0104
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1,372-1,627 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
22 lb (10 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
1,372-1,627 mm
Item #: UBYE57KIT0104
Mpn: YE57KIT0104
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1,372-1,627 mm
Box Quantity
EA
-0
UBYE57KIT0105
Mpn: YE57KIT0105
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
44 lb (20 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1628-1883 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
44 lb (20 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
1628-1883 mm
Item #: UBYE57KIT0105
Mpn: YE57KIT0105
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
44 lb (20 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1628-1883 mm
Box Quantity
EA
-0
UBYE57KIT0106
Mpn: YE57KIT0106
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
44 lb (20 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1,884-2,139 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
44 lb (20 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
1,884-2,139 mm
Item #: UBYE57KIT0106
Mpn: YE57KIT0106
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
44 lb (20 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
1,884-2,139 mm
Box Quantity
EA
-0
UBYE57KIT0107
Mpn: YE57KIT0107
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
2,140-2,400 mm
Box Quantity
Sliding Door Systems
Slider S10

31-1/2" (800mm)
22 lb (10 kg)
1-9/16" (40mm)
Double
47-1/4" (1,200mm)
2,140-2,400 mm
Item #: UBYE57KIT0107
Mpn: YE57KIT0107
Type
Sliding Door Systems
Series
Slider S10
Mechanism Length

Maximum Door Height
31-1/2" (800mm)
Maximum Door Weight
22 lb (10 kg)
Maximum Door Thickness
1-9/16" (40mm)
Style
Double
Maximum Door Width
47-1/4" (1,200mm)
Internal Cabinet Width
2,140-2,400 mm
Box Quantity
